| No | Name | Parameters |

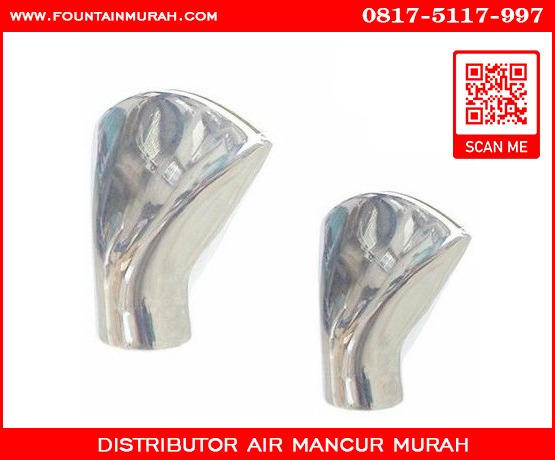

| 1 | Product Name | Nozzle Fan (Kipas) |
| 2 | Material | STainless Steel |
| 3 | Thread | FNPT Stainless Steel Fan Fountain Nozzles Water Fountain Spray Heads |
| 4 | Water Flow Rate | 3 – 30m3/h |
| 5 | Pressure | 60 – 100Kpa |
| 6 | High Light | 30m3/H Fan Fountain Nozzle, Architectural NPT Fan Fountain Nozzle |
| 7 | Water Inlet | 3/4″, 1″, 1.5″, 2″ Stainless Steel Fan Fountain Nozzles Water Fountain Spray Heads |
| 8 | Water Spray High | 0.2 – 1.3m |
| 9 | Water Spray Diameter | 0.4 – 2.2m |
| 10 | Item Weight | 0.3 – 1.25Kg |

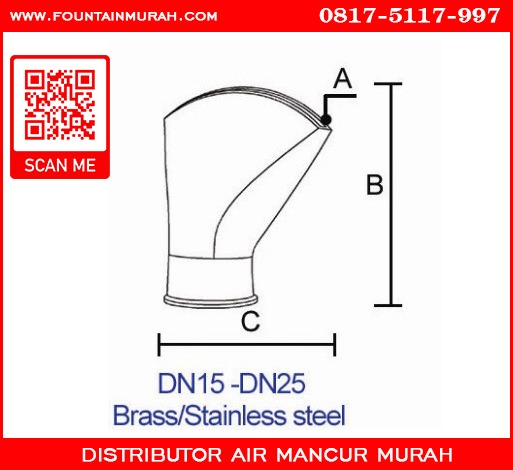

| Remarks | Specifications | |||
| DN40 | DN25 | DN20 | DN15 | |
| A (mm) | 5 | 4 | 4 | 3.5 |
| B (mm) | 145 | 120 | 110 | 83 |
| C (mm) | 138 | 131 | 105 | 78 |
| Code | Model | Connections (G) | Pressure (Kpa) | Discharge (m3/h) | Height (m) |
Diameter (m) |
| 012250 | MSxT50 | 2″ | 40-100 | 18-30 | 0.6-1.3 | 1.0-2.2 |
| 012251 | MSxT40 | 1 ½” | 40-100 | 16-28 | 0.5-1.0 | 0.8-1.5 |
| 012252 | MSxT25 | 1″ | 40-100 | 8-15 | 0.3-0.8 | 0.6-1.2 |
| 012253 | MSxT20 | ¾” | 60 | 3-4 | 0.2-0.6 | 0.4-0.8 |
Sekian informasi dan penjelasan singkat dari produk yang kami ulas diatas semoga bisa menjadi referensi untuk pembaca sekalian. jika membutuhkan informasi lebih detail langsung saja untuk kontak kami di :
