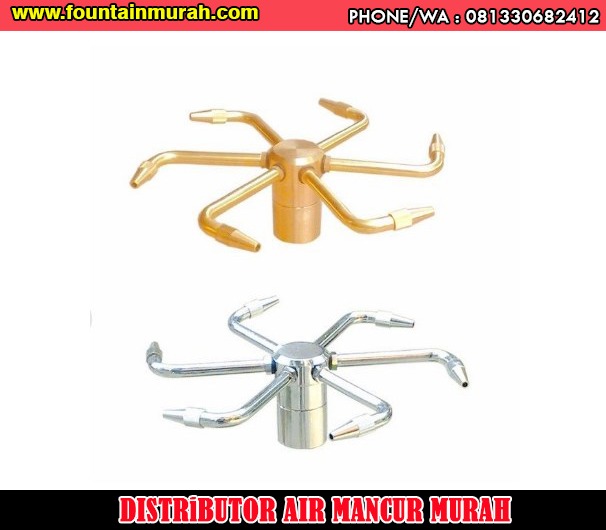

Rotating Nozzle Air Mancur Berkualitas di indonesia
Spesifikasi Utama :
| No | Name | Parameters |
| 1 | Product Name | Rotating Nozzle |
| 2 | Material | Brass / Stainless Steel |
| 3 | Thread | FNPT Rotating Fountain Jet Nozzle |
| 4 | Water Flow Rate | 4 – 8m3/h |
| 5 | Pressure | 80 – 150Kpa |
| 6 | Water Inlet | 1″, 1.5″ Brass Chrome Rotating Fountain Jet Nozzle |
| 7 | Water Spray High | 1.5 – 3m |
| 8 | Water Spray Diameter | 1 – 2m |
| 9 | Item Weight | 0.6 – 1Kg |

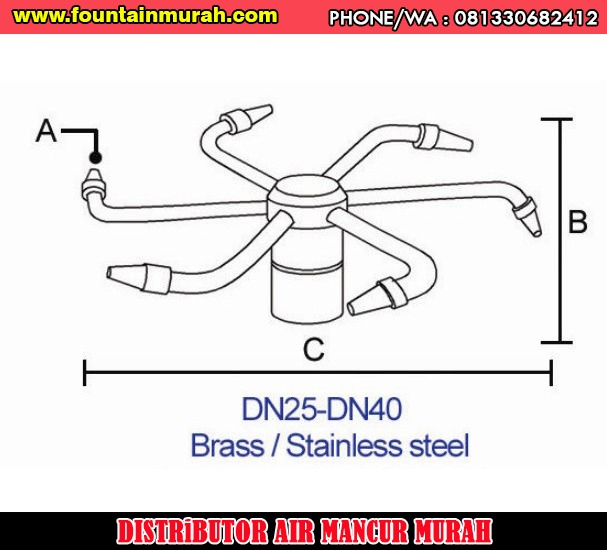

Ukuran nozzle Rotating Nozzle :
Dimension Sheet :
| Remarks | Specifications | |
| DN40 | DN25 | |
| A (mm) | 6*6 | 4*6 |
| B (mm) | 130 | 124 |
| C (mm) | 330 | 325 |
Technical Data :
| Code | Model | Connections (G) | Pressure (Kpa) | Discharge (m3/h) | Height (m) |
Diameter (m) |
| 012170 | SFcT40 | 1.5″ | 80-150 | 5-8 | 1.5-3 | 1.5-2 |
| 012171 | SFcT25 | 1″ | 80-150 | 4-5 | 1.5-2 | 1-1.5 |

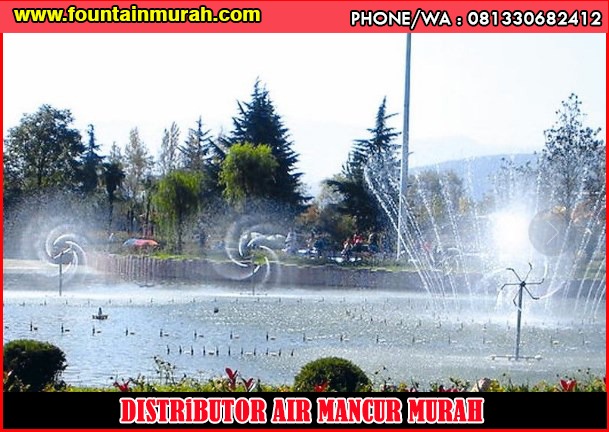

Hasil Pengaplikasian Fountain Rotating Nozzle :
Demikian Penjelasan Singkat yang bisa kami tuliskan mengenai produk Rotating fountain nozzle berkualitas kali ini semoga bisa menjadi referensi untuk anda sekalian, jika membutuhkan info harga dan penawaran langsung kontak kami di:
