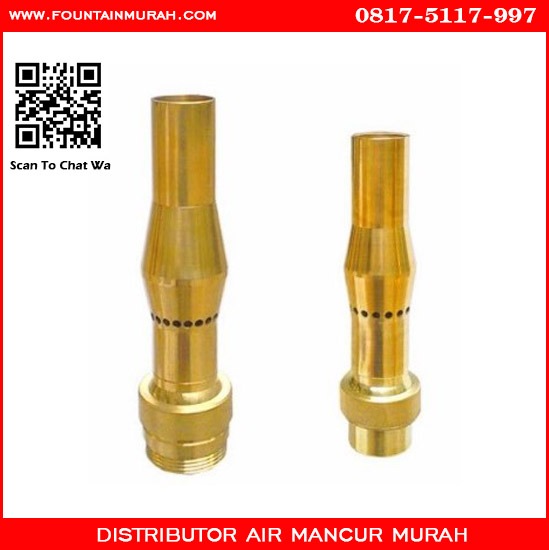

Jual air mancur dengan nozzle frothy cocok untuk taman
Detail Dan Deskripsi Nozzle Frothy Berkualitas :
| No | Name | Parameters |
| 1 | Product Name | Nozzle Frothy |
| 2 | Material | Fully Brass Forthy Water Fountain Jet Nozzle |
| 3 | Thread | FNPT Fully Brass Forthy Water Fountain Jet Nozzle |
| 4 | Water Flow Rate | 2 – 25m3/h |
| 5 | Pressure | 40 – 250Kpa |
| 6 | High Light | Brass 1 2 inch Fountain Nozzle, frothy fountain nozzle |
| 7 | Water Inlet | 1/2″, 3/4″, 1″, 1.5″ , 2″ Fully Brass Forthy Water Fountain Jet Nozzle |
| 8 | Water Spray High | 0.5 – 5m |
| 9 | Water Spray Diameter | Vertical Or Paraolic |
| 10 | Item Weight | 0.8 – 1.2Kg |
Ukuran Diameter Nozzle Air mancur Frothy Kuningan :
Table diameter nozzle :
| Remarks | Specifications | |||
| DN40 | DN25 | DN20 | DN15 | |
| A (mm) | 35 | 30 | 23 | 19 |
| B (mm) | 182 | 175 | 155 | 148 |
| C (mm) | 55 | 45 | 38 | 35 |
DATA TEKNIS NOZZLE :
| Code | Model | Connections (G) | Pressure (Kpa) |
Discharge (m3/h) | Height (m) |
| 012200 | CJqT40 | 1 ½” | 150-250 | 18-25 | 2-5 |
| 012201 | CJqT25 | 1″ | 100-200 | 8-15 | 1.5-4.0 |
| 012202 | CJqT20 | ¾” | 80-150 | 4-9 | 1-3.0 |
| 012203 | CJqT15 | ½” | 80-150 | 2-4 | 0.5-0.2 |

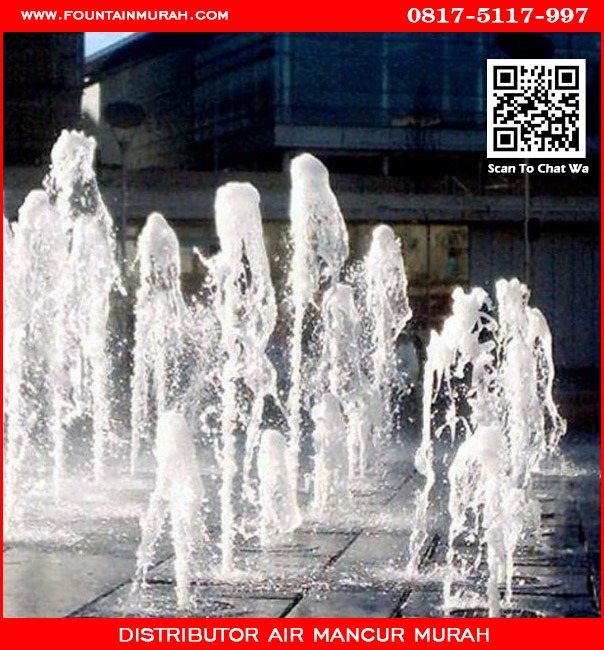

Contoh Air Mancur Menggunakan Nozzle Frothy ini :
Sekian informasi singkat yang bisa kami tuliskan, semoga bisa memberikan referensi untuk anda sekalian. jika membutuhkan informasi yang lebih detail silahkan langsung menghubungi kami di :
